T40 is a versatile GNSS receiver equipped with dual-laser cameras. lt integrates a high-precision positioning module, lMU, AR, laser technology, and laser visualization to enable high-precision positioning, tilt measurement, AR real-world staking, and visualized laser point measurement. it boasts a maximum testing radius of up to 30 meters. The receiver features a robust magnesium-aluminum alloy design, offering durability and reliability. lt supports hot-swappable batteries, allowing quick recharging without power interruption, thereby extending operational time.
Full-System, Multi-Frequency GNSS Receiver
Built in two 7.2V, 3400mAh removable powerful batteries.
Visualized Laser Measurement
Ultra-wide-angle camera,AR Real-Time Stakeout
The least generation IMU technology
Parameters
Size

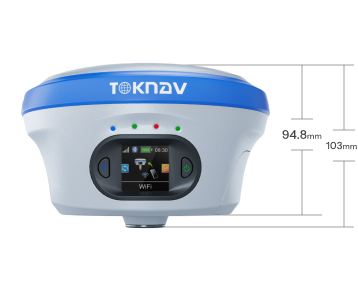

Φ160mm*103mm
Weight
850g
Operating System
Linux
Channel
1408
GNSS Tracking
GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS
Data Communication
4G/Bluetooth/WiFi/Radio
Data Storage
32GB storage
Protection
IP68
Work Time
48 hours
Equipped with electronic fence system, Toknav's product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details.
