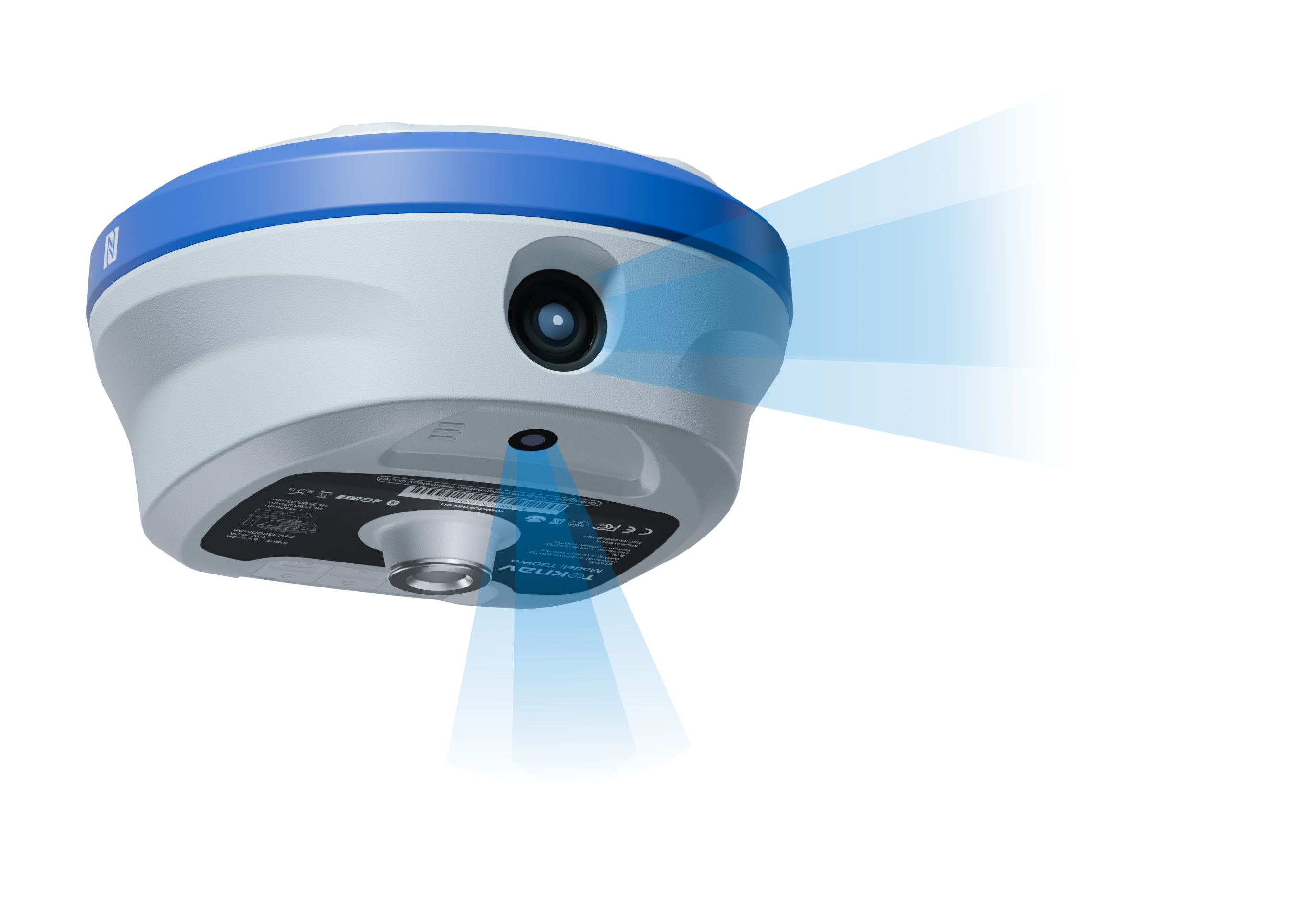

T30Pro

Integrated Photogrammetry and AR Stakeout RTK

T30Pro is a GNSS receiver with a long battery life integrates AR and image surveying (IS). It has a built-in high-precision positioning module that supports tracking all of the satellite signals. It is equipped with 4G Full Netcom, Bluetooth, Wi-Fi, a 5W data transmission radio. With a 7.2V, 13800mAh battery, it supports two days of operation after a single charge. The receiver also features a high-precision IMU module, IS, and AR stakeout, further expanding the boundaries of RTK survey.

Full System GNSS Reception

Built in7.2V, 13800mAh battery, 2 days of operation after a single charge

The latest generation IMU technology

Integrated Image Survey and AR Real-time Stakeout

IP68 rating protection

Parameters

Size

Φ174.9mm*104.9mm

Weight

1500g

Operating System

Linux

Channel

1408

GNSS Tracking

GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS

Data Communication

4G/Bluetooth/WiFi/Radio

Data Storage

32GB

Protection

IP68

Work Time

48 hours

Equipped with electronic fence system, Toknav's product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details.

Download

T30Pro GNSS Receiver.pdf

T30Pro GNSS Receiver User Guide.pdf
