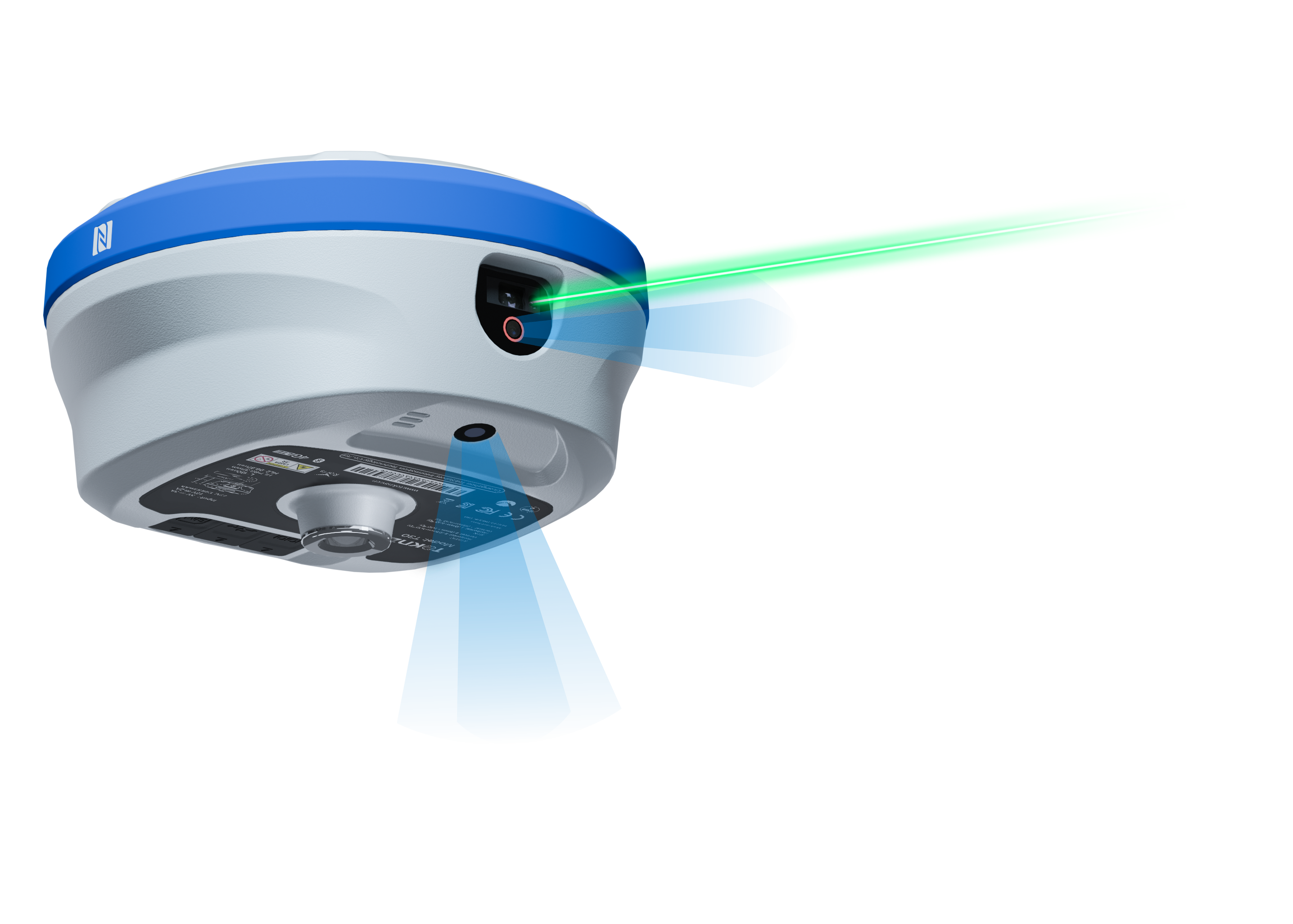

T30
Laser Measurement RTK
T30 is a full-featured GNSS receiver designed for long battery life and high precision. lt includes an advanced positioning module supporting full-system and multi-frequency satellite signal tracking. Equipped with 4G universal connectivity, Bluetooth, WiFi, a 5W data radio, and a large-capacity battery, it can operate continuously for up to two days on a single charge. The device integrates a high-precision inertial navigation system combined with AR and laser technology for AR stakeout and laser measurement, and augmented reality plotting, making surveying tasks more efficient and convenient.
Full System GNSS Reception
Integrated 4G and 5W radio enable simultaneous network and radio differential transmission
Built in 13800mAh battery, works for 2 days on a single charge
The latest generation IMU technology
Laser Measurement & AR Real-Time Stakeout
Parameters
Size
Φ174.9mm*104.9mm
Weight
1500g
Operating System

Linux

Channel

1408

GNSS Tracking

GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS

Data Communication

4G/Bluetooth/WiFi/Radio

Data Storage

32GB storage

Protection

IP68

Work Time

48 hours

Equipped with electronic fence system, Toknav's product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details.
