P8Global is a portable intelligent positioning terminal developed based on BDS high-precision positioning technology. The main unit is lightweight and compact, making it easy to carry around. It supports tracking of signals from all satellite constellations with 1408 channels, built-in high-precision IMU supports tilt measurement, providing centimeter-level positioning accuracy. It caters to various measurement and layout tasks such as road construction, power line surveying, site leveling control, CAD applications, railway stakeout, and etc.
Multi-constellation and multi-frequency
Surfing around the world
IMU Tilt sensor Up to 60°
Easy to carry with one hand
Parameters

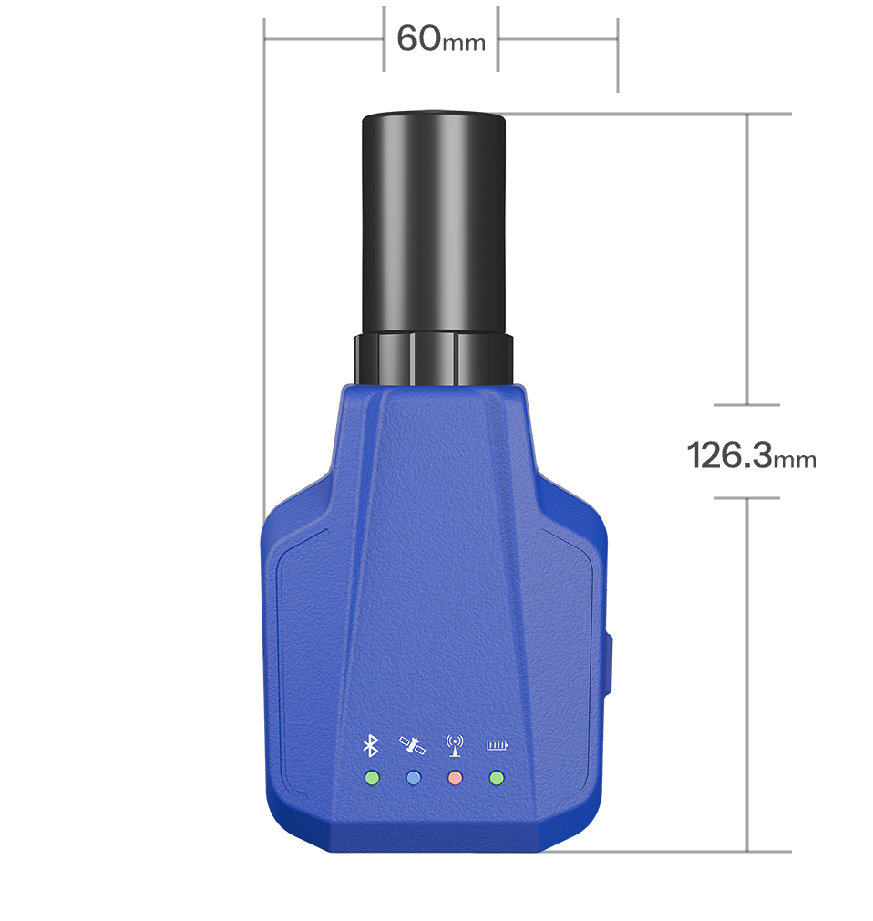

Size
60*41.3*126.3mm
Weight
176g
Hardware System
Qualcomm Cortex-A7
Operation System
Linux
GNSS Tracking
GPS, GLONASS, BDS, GALILEO, QZSS, SBAS and IRNSS
Data Communication
Global 4G/Bluetooth
Data Update Frequency
5Hz
Protection
IP67
Work Time
More than 12 hours
Equipped with electronic fence system, Toknav's product have area code restrictions. Any issue please contact Toknav or local dealers to verify the specific details.
